Good thing here is you can simply unbolt it, or put it back on, depending on your ride planned.
That will be easy enough...
DCT Rear Brake Conversion
- Thread starter Warlord
- Start date
Good thing here is you can simply unbolt it, or put it back on, depending on your ride planned.
That will be easy enough...
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
Ok.... I think I've pretty much got the left hand side brake lever sorted out.

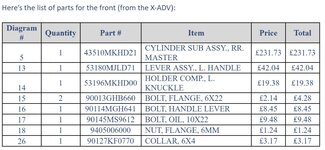

It can be done using the Honda X-Adv kit.
Jonathan at Rugged Roads has been very helpful and helping me in the background. The only part missing at this end, is the brake hose that's long enough to reach the rear brake.
It can be done using the Honda X-Adv kit.
Jonathan at Rugged Roads has been very helpful and helping me in the background. The only part missing at this end, is the brake hose that's long enough to reach the rear brake.
Attachments
At the rear brake caliper end, I found another thread on here from years ago....
https://www.ukgser.com/forums/showthread.php/465715-DCT-Left-Hand-Rear-Brake-Lever
Suggesting there might be a billet adapter that can be used?
I've ordered a second hand rear brake cylinder off eBay, so I can mess about with it off the bike. See what can be done there.
So that might be as simple as that !!
https://www.ukgser.com/forums/showthread.php/465715-DCT-Left-Hand-Rear-Brake-Lever
Suggesting there might be a billet adapter that can be used?
I've ordered a second hand rear brake cylinder off eBay, so I can mess about with it off the bike. See what can be done there.
So that might be as simple as that !!
THE PROBLEM
The Problem is the Parking Brake Lever, which now has to be relocated......
This bit I'm stuck on.
I'm toying with the idea of a VFR/CrossTourer DCT rear parking brake handle. But don't know the diameter of the mounting bracket, or where it might go on the Africa Twin? Or even if it's compatible.
I've searched on Google and can't find anybody that's tried it? Or rejected it as a plan?
The Problem is the Parking Brake Lever, which now has to be relocated......
This bit I'm stuck on.
I'm toying with the idea of a VFR/CrossTourer DCT rear parking brake handle. But don't know the diameter of the mounting bracket, or where it might go on the Africa Twin? Or even if it's compatible.
I've searched on Google and can't find anybody that's tried it? Or rejected it as a plan?
The Problem is the Parking Brake Lever, which now has to be relocated......
This bit I'm stuck on.
I'm toying with the idea of a VFR/CrossTourer DCT rear parking brake handle. But don't know the diameter of the mounting bracket, or where it might go on the Africa Twin? Or even if it's compatible.
I've searched on Google and can't find anybody that's tried it? Or rejected it as a plan?
Do away with the parking brake completely and use some aircraft chocks
or a stick between the spokes
Is the vrf brake different the the CRF one?
Do away with the parking brake completely and use some aircraft chocks
Is the vrf brake different the the CRF one?
Or just a rubber band round the throttle and front brake lever....
It’s cable operated in exactly the same way so thefore all you need to do is mount the VFR lever on the bars somewhere , if there is room, and then possible re route the cable slightly differently around the bike to allow for the fact that the lever will be more “inboard” than it’s current position so the cable will be slightly too long...or get the cable shortened.
I can go and measure the diameter of my bars where the lever is mounted if that helps ?
This might just be the better option
I can go and measure the diameter of my bars where the lever is mounted if that helps ?
This might just be the better option
It’s cable operated in exactly the same way so thefore all you need to do is mount the VFR lever on the bars somewhere , if there is room, and then possible re route the cable slightly differently around the bike to allow for the fact that the lever will be more “inboard” than it’s current position so the cable will be slightly too long...or get the cable shortened.
I can go and measure the diameter of my bars where the lever is mounted if that helps ?
This might just be the better option
Yes please Rushy, can you measure the bars?
Do you have the Handbrake Lever.... ?
Or cable tie? Just hook it over the brake lever?
- Joined
- Nov 5, 2015
- Messages
- 12,989
- Reaction score
- 4,917
When I had my Crosstourer DCT I think I used the handbrake once, it was next to useless
Just saying
Just saying
Yes I do . The handlebars are fat bars. I just measured them and they taper down to a constant 21mm OD where are the controls are fitted including the handbrake lever .
When I had my Crosstourer DCT I think I used the handbrake once, it was next to useless
Just saying
Yes, same here. I'm seriously thinking of eliminating it. Although I think I'll need something by law, especially when leaving bike on a slope.
A thick cable tie would do the job, pre-looped, just hook it over the compressed lever...... when you need it....
Yes I do . The handlebars are fat bars. I just measured them and they taper down to a constant 21mm OD where are the controls are fitted including the handbrake lever .
Cheers, I'll have a look at that again tomorrow.
When I had my Crosstourer DCT I think I used the handbrake once, it was next to useless
Just saying
Yup. I recently fitted new rear pads to both callipers , adjusted the parking brake as per the manual and it was spot on . After one days riding I tried it and it seemed to have gone out of adjustment . The next time I tried 500 miles later was to hold the bike on a very steep hill whilst I took a photo. Didn’t hold it . I also tried to park up on the gated road leading down into Dent to hold open a gate and had to let one of the other lads do it or my bike would have just rolled off the side stand.
You could trim the lever down.
https://www.ebay.co.uk/itm/Clutch-L...otorised-Motorized-Bicycle-Bike/133025048687?
Small lever version.
https://www.ebay.co.uk/itm/Clutch-L...otorised-Motorized-Bicycle-Bike/251258601895?
https://www.ebay.co.uk/itm/Clutch-L...otorised-Motorized-Bicycle-Bike/133025048687?
Small lever version.
https://www.ebay.co.uk/itm/Clutch-L...otorised-Motorized-Bicycle-Bike/251258601895?
You can get cable ties that have a release on them so the are reusable
That's not how I intend to use them, but cheers for the idea.
I'll show a picture once I've done a mock up....

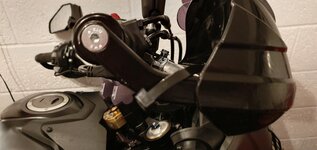

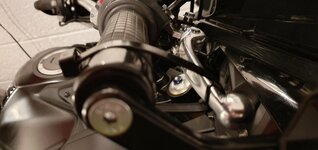

Ok here you go.

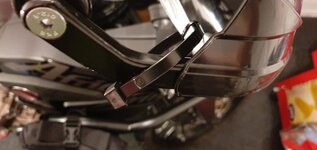

What about two cable ties.... one thick one (to be used as the main locking mechanism) and one very small one, to hold the big one to the lever.
Under normal force, it slides up and down the hand-guard rail. When needed for lockout, it needs to be pulled hard and looped over the handlebar.
As the main lockout cable tie is at an angle, it has to be manoeuvred into position, it can't accidentally flop into the locked position.
(The pictures may not be in sequence, but it shows the idea and in practice on the front brake lever)
What about two cable ties.... one thick one (to be used as the main locking mechanism) and one very small one, to hold the big one to the lever.
Under normal force, it slides up and down the hand-guard rail. When needed for lockout, it needs to be pulled hard and looped over the handlebar.
As the main lockout cable tie is at an angle, it has to be manoeuvred into position, it can't accidentally flop into the locked position.
(The pictures may not be in sequence, but it shows the idea and in practice on the front brake lever)
