Good afternoon, I have bought a auxiliary light kit from the dealer, I can't for the life of me find the plugs on the bike to plug in the sub loom. Has anyone fitted them and can tell me where to look. BMW R1200 GS 2015. Thanks Dave



[autogs]

Behind the beak on the lhs, and the dealer needs to program the bike after to get them to work.

Sent from my SM-A202F using Tapatalk



[Winjar]

Very easy to look, follow instructions.

https://www.bmw-motorrad-bohling.co...50)_Installation_LED_auxiliary_headlights.pdf



[Oldbrook]

Hi they are the instructions I have the two plugs it says to connect to on my bike both are connected already. I have all the plastics of the bike and can't find any other plugs.



[autogs]

Unplug and connect your aux light harness into either end

Sent from my SM-A202F using Tapatalk



[Oldbrook]

None of the two plus in the pic match the plugs on the light harness, Dave



[Winjar]

None of the two plus in the pic match the plugs on the light harness, Dave



[Oldbrook]

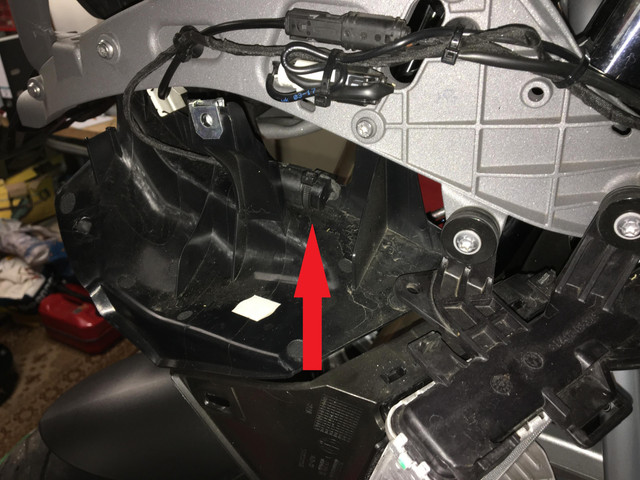

Two of the three plugs found but still one to find, last pic



[autogs]

Have you connected the handlebar switch

Sent from my SM-A202F using Tapatalk



[Oldbrook]

Yes the top pic smaller plug is the handlebar switch wire, the larger plug is the LED headlight and one plug 2nd pic have no idea where it goes. Dave



[autogs]

I'm sure there is a blank in one of the bikes original plugs, long time since I did mine

Sent from my SM-A202F using Tapatalk



[Winjar]

I'm sure there is a blank in one of the bikes original plugs, long time since I did mine

Sent from my SM-A202F using Tapatalk

correct 1 blank for more light.



[Oldbrook]

Sorry the bigger plug is from the switch and the other plug is the same as the one I cant find



[autogs]

If you look at the intructions plug 8 is just secured

Sent from my SM-A202F using Tapatalk



[Oldbrook]

The big plug had a blanking cap in it and the only plug that fits is the one from the switch. Dave



[Oldbrook]

Its says remove the protective cap, why do I have to remove the cap if it is not to be used, and that plug fits the wire from the handlebar switch



[Winjar]

Its says remove the protective cap, why do I have to remove the cap if it is not to be used, and that plug fits the wire from the handlebar switch

Sorry in german but you can see picture, many pictures in posts help

https://www.gs-forum.eu/threads/original-zusatzscheinwerfer-anschliessen.152761/



[Oldbrook]

Hi thanks for that, my bike has no plugs with the cable colours in the pics, I am going to see if anyone at work can read German and take it from there. Dave



[Winjar]

What kit you buy, is LED or NANO, maybe you not have wire loom.



[autogs]

But the first set are in english? Why are these no good

Sent from my SM-A202F using Tapatalk
