New member with major headache! Dead gs1250 2020

[Scamps51]

Think where getting somewhere with regards an issue! I’ve got power going all around the bike chased all the way up too the keyless module on the yolk an come across some damage at the rear of the keyless module looks like it’s been taking on water an has mild corrosion on the actual circuit board! I’m trying too figure out how too attract a image for you all too see



[Bigcats]

Think where getting somewhere with regards an issue! I’ve got power going all around the bike chased all the way up too the keyless module on the yolk an come across some damage at the rear of the keyless module looks like it’s been taking on water an has mild corrosion on the actual circuit board! I’m trying too figure out how too attract a image for you all too see

You can't as you are not a paid up member

If you email me at bigcats27@myyahoo.com I can add it to the thread



[Scamps51]

You can't as you are not a paid up member

If you email me at bigcats27@myyahoo.com I can add it to the thread

Just sent it you across ! Very very strange damage



[Bigcats]

Just sent it you across ! Very very strange damage



[Bigcats]

Is that plastic melted??



[Santa-2512]

Thermal event, looking at the verdigris, id say the resistance has built up, to the point the keyless module electronics have gone southbound,

Unfortunately, they only way firward is to try a known good keylesss module in place of the suspect one



[Bigcats]

Thermal event, looking at the verdigris, id say the resistance has built up, to the point the keyless module electronics have gone southbound,

Unfortunately, they only way firward is to try a known good keylesss module in place of the suspect one

I learnt a new word today!!



[Scamps51]

Is that plastic melted??

Either melted or smashed even chewed ! I couldn’t tell you but by the looks of it an with power getting up too there an still not turning on it’s got too be that



[listermint]

Either melted or smashed even chewed ! I couldn’t tell you but by the looks of it an with power getting up too there an still not turning on it’s got too be that

Well this is a thread to follow.

That's awful damage but at least you located it. Fine work.



[Victor c]

I'm sure I read somewhere a while ago, that there are known cases of the keyless button being breached and letting water in through the top. Bit of Google detective work required tomorrow!



[Pukmeister]

A good find, well done and thanks for the heads up.

Got any warranty left, I bet that is not a cheap thing to replace ?

I've seen cheap rubber keyless switch covers on Aliexpress etc that I thought were pointless tat, now perhaps I think I might buy one for my bike to avoid the water ingress suggested.

Verdigris - a posh way of saying the Green Shit from Copper going bad.



[Bigcats]

A good find, well done and thanks for the heads up.

Got any warranty left, I bet that is not a cheap thing to replace ?

I've seen cheap rubber keyless switch covers on Aliexpress etc that I thought were pointless tat, now perhaps I think I might buy one for my bike to avoid the water ingress suggested.

Verdigris - a posh way of saying the Green Shit from Copper going bad.

Don't suppose you have a link by any chance as my search isn't showing anything??

Found some but on Amazon (£28!!)
eBay £4



[Bigcats]



[Bigcats]



[knutk]

Now that the module is out, is there any way it may be opened and inspected? I don't expect that whats in there is too complicated. If you luck out, it may be just a corroded track, which may be repaired... (or not ).



[Victor c]

I thought I had seen something about the keyless button cracking https://www.advrider.com/f/threads/prevent-keyless-start-button-from-cracking.1476180/



[Pukmeister]

Now that the module is out, is there any way it may be opened and inspected? I don't expect that whats in there is too complicated. If you luck out, it may be just a corroded track, which may be repaired... (or not ).

Not beyond the realms of man to dremel the thing apart and replace the offending corroded wiring, which should get it fixed.

If the part requires replacing with a new item, it may require dealer coding (as I strongly suspect any ignition/security devices would ??)

From the Advrider link above:

66 12 8 559 944 KEYLESS RIDE CONTROL UNIT $702.83

How much !!!!!!!



[Bigcats]

I thought I had seen something about the keyless button cracking https://www.advrider.com/f/threads/prevent-keyless-start-button-from-cracking.1476180/

You can get these covers for £4 of ebay

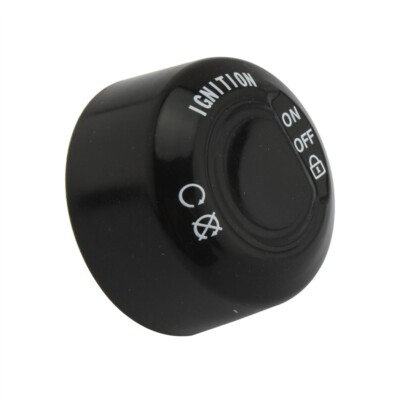

Sleek Design Key Start Ignition Cover for BMW R1250GS R1200GS F850GS Adventure | eBay

For BMW R1250GS Adventure. FOR BMW F850GS Adventure. For BMW R1200GS Adventure. FOR BMW F750GS Adventure. FOR BMW F900R. FOR BMW R1200RT. FOR BMW R1250RT. Type: -touch start case.

www.ebay.co.uk



[Pukmeister]

Don't suppose you have a link by any chance as my search isn't showing anything??

Found some but on Amazon (£28!!)
eBay £4

0.46€ 75% OFF|R1200gs r1250gs Ein Tasten Startsc halter Schutzhülle für BMW R1200 GS R1250 GS LC Adv R 1200 GS R 1250 GS Adventure Motorrad| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

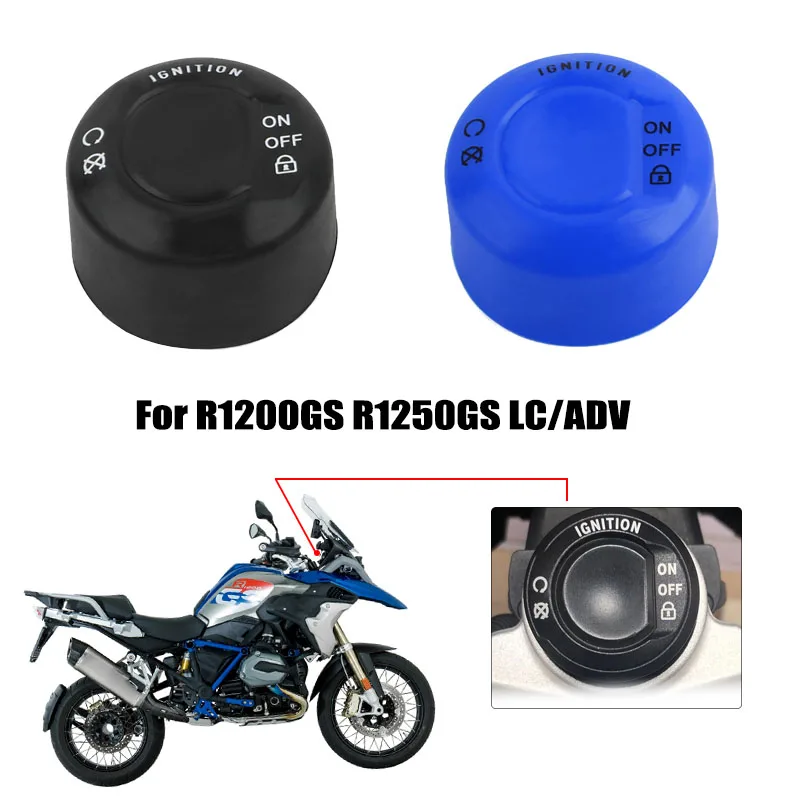

1.11€ 45% OFF|R1200GS R1250GS One key Start Schalter Schutzhülle Für BMW R1200 GS R1250 GS LC ADV R 1200 GS R 1250 GS Adventure Motorrad| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

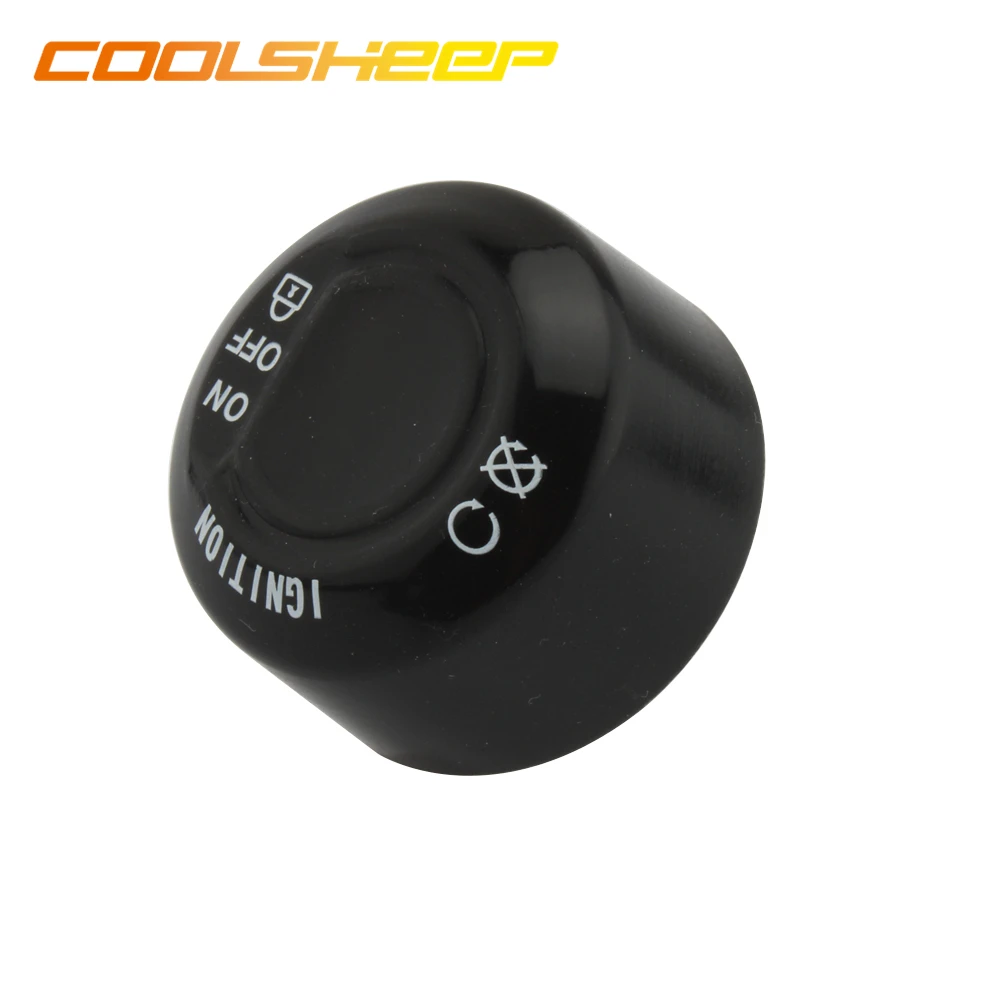

4.9€ |R1200GS One key Start Schalter Abdeckung Für BMW R1200 GS R1250 GS LC ADV R 1200 GS R 1250 GS Motorrad Protector Zubehör| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

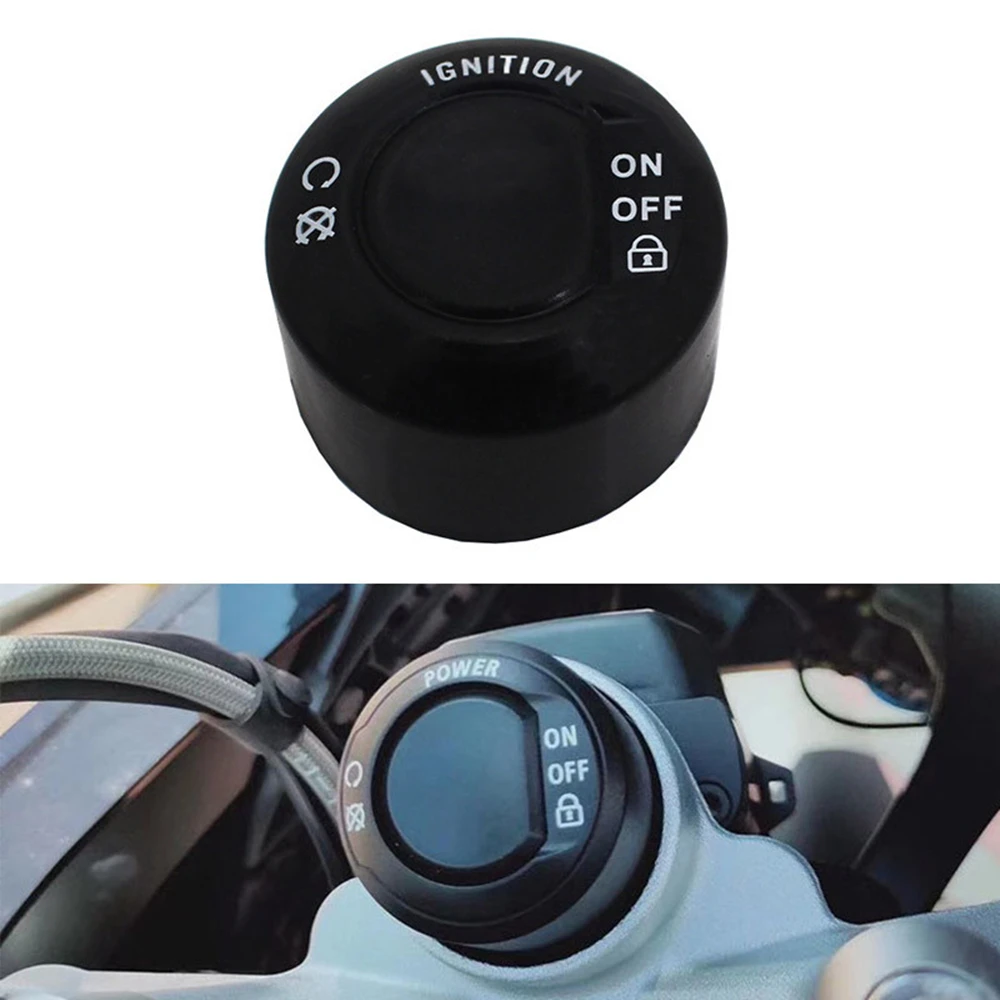

0.46€ 93% OFF|Motorrad Motor Start Stop Taste Kappe AUF/OFF Protector Abdeckung Für BMW R1200GS R1250GS ADV R1250 RT R RS f750 850 F900 Motor| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

I am not a fan of the keyless switch, so after reading the Advrider thread fully, I have ordered some plain 1-5/8" plastic pipe covers from Amazon to both cover and hide the keyless button from prying eyes:

https://www.amazon.co.uk/Prescott-Plastics-Round-Flexible-Rubber/dp/B07PKTPJLB/ref=sr_1_30?dib=eyJ2IjoiMSJ9.mLuStfC0-iq-k37aTEDVUWURCxPSxSX46wAVkLmxu7tCxHkuNoIIQ7X4YEQt5ftVv-7ENCCEEbC8kRRk1tXOfsVN2VNwvnTz2kUvUT4jRTtWdWjBBQRkjr3WZKGX258NNe4gjFZRUDwqXSUartRhTVn1vz_Y6LeodHD19p0FiOiO3VeCNTaIqagmISNyOBPcfOkat6R0CT--WnlIp0qhzYnXB2jI_19M1gpl7WpDzG2XX8wt2VyWFZI1KYFOcPQsBTWmoKAUcjwYtTYdMBvSoO-q-HmAb2apYlNJWsNSUiI.cKFrcdAivuruVL1YqcrAabWQWZh7Pw9Ewio4WoAh2cw&dib_tag=se&keywords=Prescott+Plastics&qid=1708685398&sr=8-30



[Bigcats]

I am not a fan of the keyless switch, so after reading the Advrider thread fully, I have ordered some plain 1-5/8" plastic pipe covers from Amazon to both cover and hide the keyless button from prying eyes:

That order is for two isn't it??

I'm happy to go halfs with you if you only want one..........I only live down the road from you (in fact work over in Whitely)
