What plug do I need for this socket anyone?
- Thread starter RPMDAKAR
- Start date
Brian A.
Registered user
Hello RPM Dakar,
This is the plug that I used for that socket, but as far as I know it's only meant for light loads such as a satnav, which is what I use mine for. No doubt someone else will be able to clarify that point.
I hope this helps!
Brian.
This is the plug that I used for that socket, but as far as I know it's only meant for light loads such as a satnav, which is what I use mine for. No doubt someone else will be able to clarify that point.

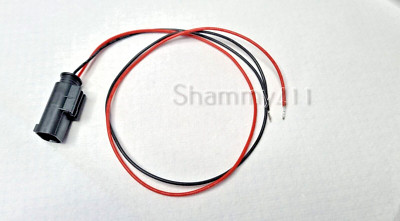

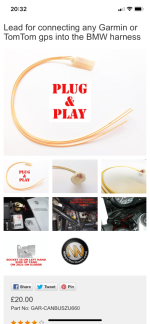

Lead for connecting any Garmin or TomTom GPS into the BMW harness (61 12 8 544) | eBay
Plug and Play! R NINE T (2015 on) R1250RT R1200ST R1200S R1200R S1000R WIRING Wires are numbered and need connecting as follows: No 1 lead earth ( Black lead ) No 2 Not in use No 3 to red lead on sat nav ( Red Lead 12v ).
www.ebay.co.uk
I hope this helps!
Brian.
Nippy Norman does this plug but as the previous post says it for satnav type loads
Attachments
Looks like it could be used as an ignition switched trigger for a relay if you fancy a bit if DIY wiring.
If not then a Healtech Thunder Box might be the easiest way and much cheaper than an EZCan.
If not then a Healtech Thunder Box might be the easiest way and much cheaper than an EZCan.
