Exactly how I fitted mine. But I used white lithium grease to seal both rubber gaitors... at either end.
So I'm guessing mine is air tight now....
Got Shaft Rot.... again WTF
- Thread starter Warlord
- Start date
Exactly how I fitted mine. But I used white lithium grease to seal both rubber gaitors... at either end.
So I'm guessing mine is air tight now....
I bet it isn’t
I tell you chain drive is a lot less maintenance than shaft drive....
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
That's exactly what is now happening... look at the pics

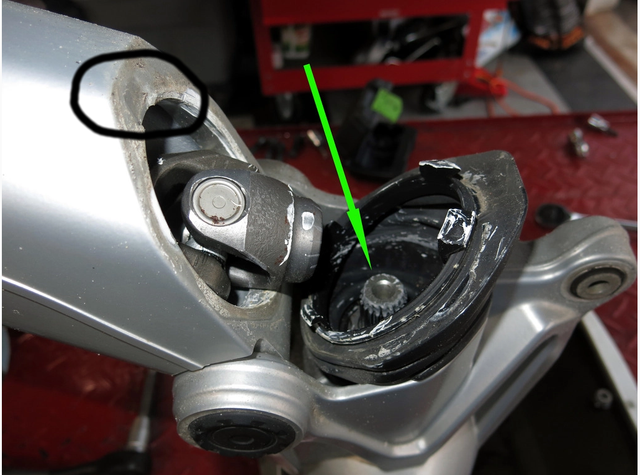

If I was a betting man, I reckon the little dent in the final drive that I have circled in black in the picture below, should be some sort of vent to relieve pressure, and not be full of grease, it is obviously there for some reason, as the black lugs go left and right of it.
Yeah, that's there to let the water in
If you go by previous thoughts, that a thin bead of grease needs to be applied around the lip of the rubber boot... to allow water to run down that gully, then that little dent you've circled would still be redundant as it's on the outside of the seal. So it wouldn't vent anything.
I honestly think there isn't an answer, and BMW just expect it all to go rusty inside as you can't see it, so it's out of mind.
Shite design.....
If I take it all apart and it's bone dry inside, I'll pursue this until I find the answer at how to mitigate the pressure changes inside the shaft drive.
If I take it all apart and it's like some sort of pool party in there again, I'll seriously consider drilling holes..... or set fire to it all
If I take it all apart and it's like some sort of pool party in there again, I'll seriously consider drilling holes..... or set fire to it all
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
If I take it all apart and it's bone dry inside, I'll pursue this until I find the answer at how to mitigate the pressure changes inside the shaft drive.
If I take it all apart and it's like some sort of pool party in there again, I'll seriously consider drilling holes..... or set fire to it all
Has your gaitor got that metal spring clip inside..............
Yep...
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
Fecker is possesed then............
Fire is the only cure
Interesting that none of the 'engineers' on here have jumped on this one with a smart answer?!
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
Fire is the only cure
Interesting that none of the 'engineers' on here have jumped on this one with a smart answer?!
Because most of them do not have a tool in the garage..............
Fire is the only cure
Interesting that none of the 'engineers' on here have jumped on this one with a smart answer?!
I fitted these to a crankcase on a classic bike ( 1/8" BSP) that I could net stop over pressurising and pissing oil everywhere.
Trouble is if you drill the casting then your screwed for a warranty claim later. I would drill a very small hole in the gaiter underneath, if there is room and glue in a rubber grommet (to stop the hole spreading).
Attachments
Well here's an off the wall suggestion/observation, as the bike rides along with varying amounts of suspension travel I assume that the volume inside the swingarm is increasing/decreasing albeit slightly as the fd pivots up and down.
I would suggest a small hole in the bellows to test the theory (cheaper to replace than the swingarm casting if it doesn't work)
Me?, I'd be happy to pop a small clean hole into the lower part of the SA casting - but then my bike is an '05 with the SA on the original side.(And no rusty shaft IIRC)
Perhaps when they swapped sides they forgot to reposition the drain channel?
I would suggest a small hole in the bellows to test the theory (cheaper to replace than the swingarm casting if it doesn't work)
Me?, I'd be happy to pop a small clean hole into the lower part of the SA casting - but then my bike is an '05 with the SA on the original side.(And no rusty shaft IIRC)
Perhaps when they swapped sides they forgot to reposition the drain channel?
Listen... I know how bagpipes work, I don't want to be playing 'Mull of Kintyre' every time I hit a bump in the road....
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
What is strange is that on the older pre wetheads, that little notch does not exist on the swingarm..........
Sounds just the thing for the NC500 but could get tedious on the Costa run....
Deleted account 191119001
Registered user
- Joined
- Aug 13, 2017
- Messages
- 12,798
- Reaction score
- 9
Yep and you do not want any grease coming out of the hole on the rear tyre either................
So I went into the garage today to check this rubber boot, and it was sucked hard onto the shaft.
I got a flat head screwdriver and pulled back the rubber flap and pressed on the boot, where the notch is on the swingarm and.......
Swwwoooooooooooooooooshhhhhh
Air was sucked in, and the rubber boot inflated back to normal.
Must be a hell of a lot of pressure vacuum inside there
Anyways, that's how to release the pressure if you seal it all in
I'm a bit concerned of the impact this might be having on the final drive shaft seal?
I got a flat head screwdriver and pulled back the rubber flap and pressed on the boot, where the notch is on the swingarm and.......
Swwwoooooooooooooooooshhhhhh
Air was sucked in, and the rubber boot inflated back to normal.
Must be a hell of a lot of pressure vacuum inside there
Anyways, that's how to release the pressure if you seal it all in
I'm a bit concerned of the impact this might be having on the final drive shaft seal?
