Service sheets

[Micky G]

Morning all,

I am looking for service sheets for my 2010 GSA.
I have been searching on here and the internet without any success,
can anyone point me in the right direction?
I'll be doing my own servicing from now on so I'll have a record of everything that's been done.
Thanks in advance. M



[botus]

if you can't find it here - likely not worth bothering with

oil change using MA2 spec 15W50
every other year change gearbox and rear bevel fluid
if you believe in spending money, change the brake fluid - note ABS module will die if you never do it or change every week
and throw in an air filter and do valve clearances as per user manual mileage - but note I would check valve clearance at first ownership - mine had 2 officially wrong and 5 at the very end of limits, both far too big and far too small at just 9 k miles

hexhead valve clearances

R1200 24K



[Hubs]

A previous owner carefully recorded everything he did at each service, which is a pretty good record. Additional elements ( depending on service) were gearbox and final drive oil. I'm using this as a prompt. Even have pictures of the driveshaft after one service!



[JonnyBravo]

Like these ?




If so, I can message them to you

Actually I cant, you are not a subscriber!



[Hubs]

Here's a PDF version of the same list done with checkboxes if that's any use..



[er-minio]

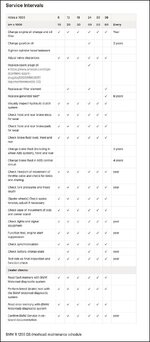

I have this (for my 2007 hexhead) as a reference in the place where I keep track of all the work done on my GS.
I too started doing the basic servicing myself on this bike. Bigger jobs --> professional mechanic.



I think I extracted this from the RepROM. Can potentially check for 2010.
For the last couple of services I did myself I - mostly for fun - generated the service sheet from the RepROM. Kinda handy when ordering parts.



[Micky G]

Thanks guys
