ZFE and switch gear update.

[Slime Bomb]

Well, I sourced a used ZFE the same as mine and it solved nothing! I'm starting to think it maybe a chaffed wire in the headstock somewhere but where?

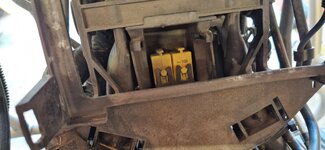

Does anyone know what the two yellow relay type things are behind the motronics unit? Are they anything to do with the switchgear and what else is there that has anything to do with the switchgear.

I am at a complete loss now and can't believe that this has rendered the bike scrap as the MOT runs out soon and there's a two month wait for BMW diagnostics.



[albatross]

Well, I sourced a used ZFE the same as mine and it solved nothing! I'm starting to think it maybe a chaffed wire in the headstock somewhere but where?

Does anyone know what the two yellow relay type things are behind the motronics unit? Are they anything to do with the switchgear and what else is there that has anything to do with the switchgear.

I am at a complete loss now and can't believe that this has rendered the bike scrap as the MOT runs out soon and there's a two month wait for BMW diagnostics.
View attachment 520450

Simon, have a look here…if that’s any help ?

https://motorcycleinfo.co.uk/wp-content/uploads/2020/01/R1200GS_Wiring_Electrics_Diagram.pdf



[Slime Bomb]

Thanks Albert, I'll take a look. Never been that good with wiring diagrams though.



[albatross]

85-87b open circuit relay? Doesn’t give any colours…all other relays I can see are flasher and starter relay



[albatross]

Thanks Albert, I'll take a look. Never been that good with wiring diagrams though.

Neither myself and that look’s blooming complicated, good lord, hard without a diagnostic tool..Gs911??



[botus]

was the VO in the new ZFE the same - if it isn't it wont behave - the Vehicle Order (VO) list in the Kombi, the DME and the ZFE must align for all the canbus madness to cope, or features wont do what they are meant too

my older GS

321 : Headlight, left asymmetric

326 : Speedometer mph

350 : Exhaust system, chrome

381 : Operating instructions, English

420 : Side section, schwarz

519 : Heated handlebar grips

530 : Tyre Pressure Control (RDC)

539 : On-board computer

588 : Turn indicator, white

589 : Hand protector

603 : Alarm system

630 : I-ABS generation 2

650 : Automatic Stability Control (ASC)

681 : Case holder left/right

736 : National version Great Britain

773 : Seat, black

my GSA

135 : Control, operating concept

321 : Headlight, left asymmetric

326 : Speedometer mph

350 : Exhaust system, chrome

381 : Operating instructions, English

416 : ESA

430 : Safety pack

432 : Equipment package 2

519 : Heated handlebar grips

530 : Tyre Pressure Control (RDC)

539 : On-board computer

562 : Additional fog/headlight

590 : Turn indicator LED

603 : Alarm system

630 : I-ABS generation 2

650 : Automatic Stability Control (ASC)

680 : Case holder, aluminium case

736 : National version Great Britain



[Slime Bomb]

Vo?



[botus]

Vo?

it was there....

was the VO in the new ZFE the same - if it isn't it wont behave - the Vehicle Order (VO) list in the Kombi, the DME and the ZFE must align for all the canbus madness to cope, or features wont do what they are meant too



[botus]

it is possible if the donor bike was identical it should work correctly - or, if very close specification between bikes most stuff might behave...

but as an RT with cruise, a K13GT with an electric screen and GSA with ESA can use the same module - the coding inside varies between the various ZFE High modules
and a non ESA GS would have one of the large connector plugs missing (J2) - on its ZFE Basic - which can be also be a Basic Low or Basic High where it got a trip meter or not....

however even here that won't be totally straightforward... whilst I suspect for given year's the module hardware between each of the three ZFE variants could be coded to suit other bike models (say K13 module to a GS etc.) - that will only be a thing - where the software version its flashed with at present, is suitable - and as yet outside special features hidden within old dealer kit most of use don't have / know how to use / don't have the multiplexer comms kit to try, you'll not be able to flash the correct software itertation to the replacement module - so coding choices won't be available - kids do it all day long on the cars - they even put the bike software up on their servers for use - but we simple bikers are 15 years behind the times

using a RED GS911 you can back up the coding on a module - (you can't see it, they do it in the background)... and can try to reload it - whether that works for a replacement module I expect so, but can't confirm, never tried



[botus]

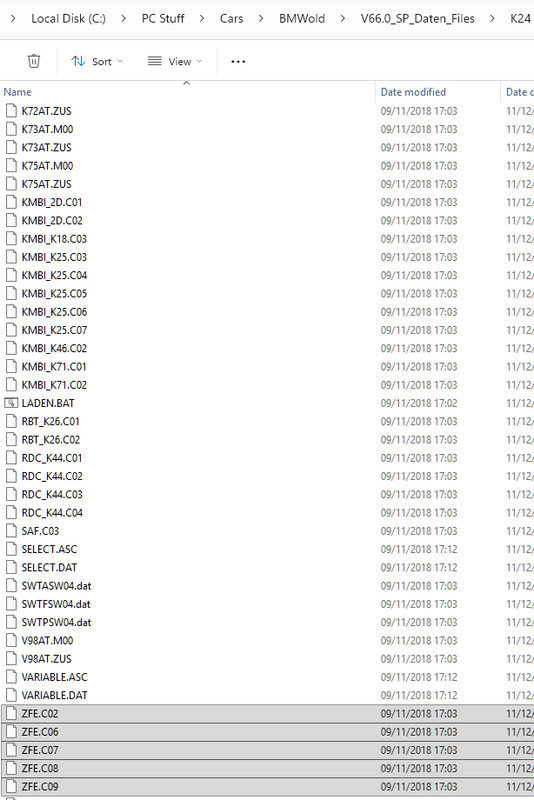

re software - for the old air cooled GS and RT models and the K1300s there was nothing newer than what's in the K24 folder of the V66 daten release



[Santa-2512]

I'll send you a wiring diagram when i get home

Do a search for " its F*cked or the lemon" you'll see the headstock wiring and the issues caused



[Slime Bomb]

Thanks Botus, you are far beyond my capabilities I'm afraid but thank you.

Santa, I'll do that in the morning.



[Miserable Git]

Was it off the same model as yours with the same spec of equipment?



[Slime Bomb]

Was it off the same model as yours with the same spec of equipment?

Yes, strangely enough.



[Slime Bomb]

I'll send you a wiring diagram when i get home

Do a search for " its F*cked or the lemon" you'll see the headstock wiring and the issues caused

Can't find it mate. Giz another clue?



[Santa-2512]

Can't find it mate. Giz another clue?

Thread 'EWS warning'

Oct 20, 2018

Went to start the bike Friday Morning and there was nothing going on .


I coud see somthing on the display but i didnt have my reading glasses on , but i'm sure it was EWS

anyway turned off and on again, and it started fine ...


Did the same on the way home, but this time in better light i could see EWS on the display

Wiggled the connector and turned off and on again and it went out, and i got home -

I'll order one from the mothership Monday

Looking at the repair CD it says you have to drill the bolt heads off, and remove them with a stud remover

And they need a special tool...

• Santa-2512
• Replies: 31
• Forum: 1200 GS Hexhead

thats the thread for ews, but it gives you an idea of where the loom runs etc

id pop the plugs off the ZFE, and continuity check from plug to each switch whilts moving the bats slowly from lock to lock

I need to hunt down the manual in a mo



[Santa-2512]

cant find the manual atm,

dont know where any of them are lol (tidied up didnt i )

will have to look later as i'm out for the rest of the evening and tommorow night as well



[Slime Bomb]

I've had a thought, what if I buy an aftermarket indicator switch, any old one and wire it up to the indicators using another relay? That way I will have indicators that work and will pass an MOT??

Next one though is a bit more complicated, another switch for high/low beam and flasher switch. Would this be possible and if so, how? I need someone to put me out of my misery with this damn thing! MOT next month...



[TLSgazza]

I've had a thought, what if I buy an aftermarket indicator switch, any old one and wire it up to the indicators using another relay? That way I will have indicators that work and will pass an MOT??

Next one though is a bit more complicated, another switch for high/low beam and flasher switch. Would this be possible and if so, how? I need someone to put me out of my misery with this damn thing! MOT next month...

I suspect the canbus will throw a hissy fit if it doesn't detect the indicators. Plus they are wired for hazards as well. The same goes for bypassing the headlights I would imagine.



[JohnnyBoxer]

I've had a thought, what if I buy an aftermarket indicator switch, any old one and wire it up to the indicators using another relay? That way I will have indicators that work and will pass an MOT??

Next one though is a bit more complicated, another switch for high/low beam and flasher switch. Would this be possible and if so, how? I need someone to put me out of my misery with this damn thing! MOT next month...

Scrap it
